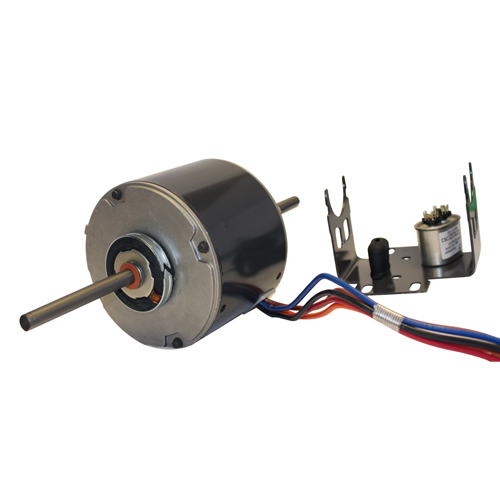

5108 - 0.33 HP - TENV - 1100 RPM

Catalog #: 5108
Model #:K055SBR5499801B

Details

Permanent Split Capacitor
Double Shaft Direct Drive Blower
5.6" Dia. Open Dripproof (ODP)
Multi-Speed Capacitor Included
Resilient Base
Discount Symbol:
DS-3HAC
Unit Weight:
20.0
lbs
List Price Per Unit:
$279.00
  • Specifications
  • Technical Data
Model_Number
K055SBR5499801B
PRODUCT NAME
.33 HP - TENV - 1100
PHASETYPE
1_PERMANENT SPLIT CAPACITOR
MOTOR ENCLOSURE
TENV
HORSEPOWER
.33
KILOWATTS
0.3
POLES
6
NUMBER SPEEDS
3
RPM
1100
HERTZ
60
VOLTS PRIMARY
230 V
VOLTS
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.5
MOUNTING
HUB/STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
16
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
36.68
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
8.929
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
A
LOCKED ROTOR AMPS
4.46
FULL LOAD AMPS PRIMARY
2.3
K055SBR5499801B
FHPO
V02815748
