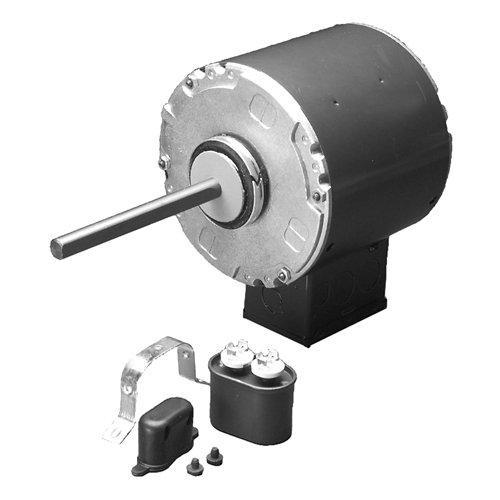

6727 - 0.33 HP - ENCLOSED - 1075 RPM

Catalog #: 6727
Model #:K055SEA1004892B

Details

Permanent Split Capacitor
Commercial Condenser Fan
5.6" Dia. Totally Enclosed
Automatic Thermal Overload Protector
Hub or Stud mount with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
17.64
lbs
List Price Per Unit:
$388.00
  • Specifications
  • Technical Data
Model_Number
K055SEA1004892B
PRODUCT NAME
.33 HP - ENCLOSED - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ENCLOSED
HORSEPOWER
.33
KILOWATTS
0.3
POLES
6
NUMBER SPEEDS
1
RPM
1075
HERTZ
60
VOLTS PRIMARY
208-230/460 V
VOLTS
208
VOLTS 2
230
VOLTS 3
460
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2
MOUNTING
BAND/HUB
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
REVERSIBLE
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
16
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
39.52
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
7.549
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
5.01
FULL LOAD AMPS PRIMARY
2.4/1.2
K055SEA1004892B
FHPO
V01243744
D04242815
