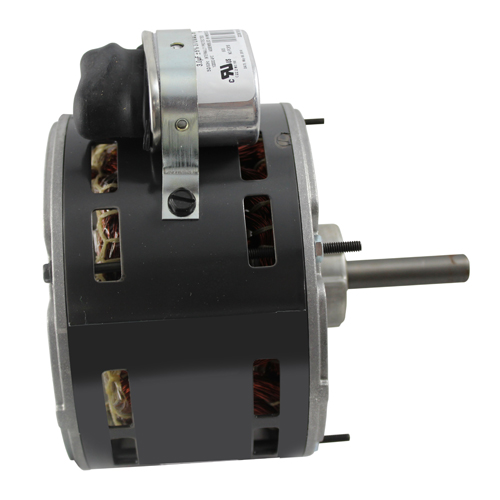

1645 - 0.167 HP - OPEN - 1550 RPM

Catalog #: 1645
Model #:K055SMA1645863B

Details

Permanent Split Capacitor
Refrigeration Condenser Fan
5.6" Dia. Open Drip Proof
OEM Direct Replacement
Hub or Stud Mount with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
12.0
lbs
List Price Per Unit:
$356.00
  • Specifications
  • Technical Data
Model_Number
K055SMA1645863B
PRODUCT NAME
.167 HP - OPEN - 1550
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.167
KILOWATTS
0.1
POLES
4
NUMBER SPEEDS
1
RPM
1550
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1
MOUNTING
STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CW LEAD END
RUNCAPMFD
3
RUNCAPVOLTS
370
SHIPPING WEIGHT
11
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
21.6
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
2.575
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
A
LOCKED ROTOR AMPS
4.53
FULL LOAD AMPS PRIMARY
1.4
K055SMA1645863B
FHPO
V01252687
D04177178
