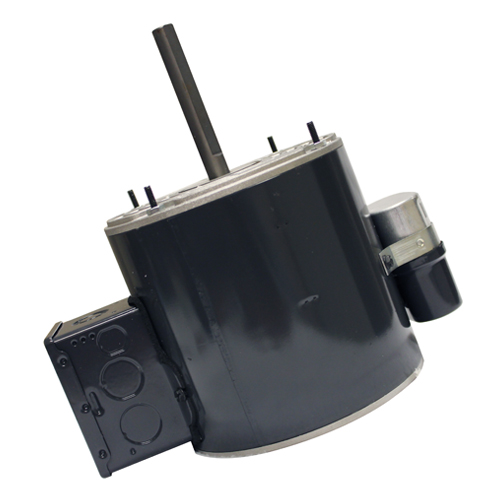

644 - 0.5 HP - OPEN - 1725 RPM

Catalog #: 644
Model #:K055SME1644673B

Details

Permanent Split Capacitor
Refrigeration Condenser Fan
5.6" Dia. Open Drip Proof
OEM Direct Replacement
Hub or Stud Mount with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
15.38
lbs
List Price Per Unit:
$338.00
  • Specifications
  • Technical Data
Model_Number
K055SME1644673B
PRODUCT NAME
.5 HP - OPEN - 1725
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.5
KILOWATTS
0.4
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
50
HERTZ 2
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.5
MOUNTING
STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
15
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
44.89
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
7.035
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
A
LOCKED ROTOR AMPS
8.4
FULL LOAD AMPS PRIMARY
2.7
K055SME1644673B
FHPO
V02837296
D04238697
