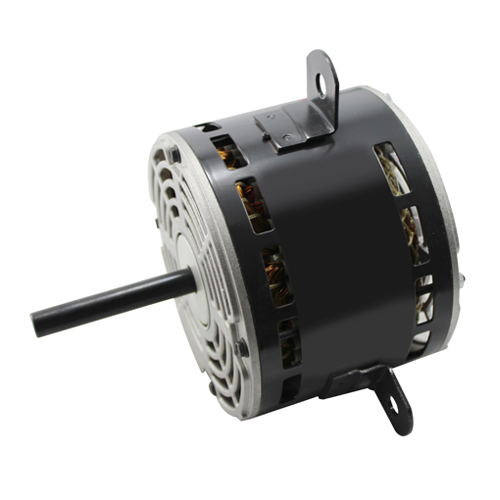

3303 - 0.25 HP - OPAO - 1075 RPM

Catalog #: 3303
Model #:K055SPS3303R12B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Enclosed Air Over
Special Mount for OEM
CARRIER OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
22.6
lbs
List Price Per Unit:
$291.00
  • Specifications
  • Technical Data
Model_Number
K055SPS3303R12B
PRODUCT NAME
.25 HP - OPAO - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPAO
HORSEPOWER
.25
KILOWATTS
0.2
POLES
6
NUMBER SPEEDS
2
RPM
1075
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.25
MOUNTING
LUG
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
23
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
37.07
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
9.982
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
A
LOCKED ROTOR AMPS
4.49
NEMA NOMINAL EFFICIENCY
53.7
FULL LOAD AMPS PRIMARY
2.5
SERVICE FACTOR AMPS PRIMARY
2.5
K055SPS3303R12B
FHPO
V02815749
