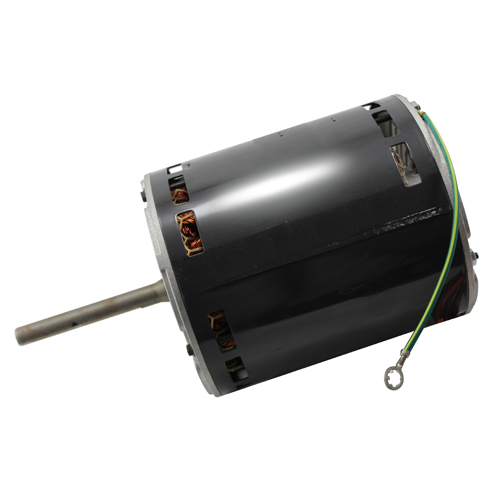

1125 - 0.75 HP - OPEN - 900 RPM

Catalog #: 1125
Model #:K055SST7211011B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over
Band Mount 4 Speed
OEM Replacement for ICP
Discount Symbol:
DS-3HAC
Unit Weight:
21.64
lbs
List Price Per Unit:
$391.00
  • Specifications
  • Technical Data
Model_Number
K055SST7211011B
PRODUCT NAME
.75 HP - OPEN - 900
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.75
KILOWATTS
0.6
POLES
6
NUMBER SPEEDS
4
RPM
900
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
3.5
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
ROTATION
CCW LEAD END
RUNCAPMFD
10
RUNCAPVOLTS
370
SHIPPING WEIGHT
24
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
75.75
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
12.28
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
19.54
FULL LOAD AMPS PRIMARY
11.9
K055SST7211011B
FHPO
V02815691
