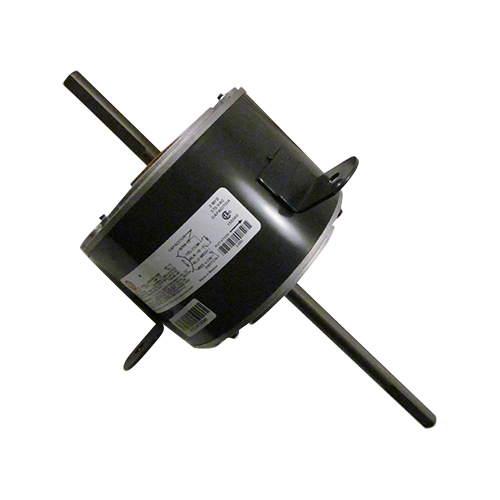

3360 - 0.2 HP - TENV - 1040 RPM

Catalog #: 3360
Model #:K055SWZ7989013B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Enclosed
Double Shaft Lug Mount
CARRIER OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
13.8
lbs
List Price Per Unit:
$287.00
  • Specifications
  • Technical Data
Model_Number
K055SWZ7989013B
PRODUCT NAME
.2 HP - TENV - 1040
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TENV
HORSEPOWER
.2
KILOWATTS
0.2
POLES
6
NUMBER SPEEDS
3
RPM
1040
HERTZ
60
VOLTS PRIMARY
277-265 V
VOLTS
277
VOLTS 2
265
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1
MOUNTING
BRACKET
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
3
RUNCAPVOLTS
370
SHIPPING WEIGHT
13
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
19.4
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
4.987
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
1.95
FULL LOAD AMPS PRIMARY
1.3
K055SWZ7989013B
FHPO
V02815759
