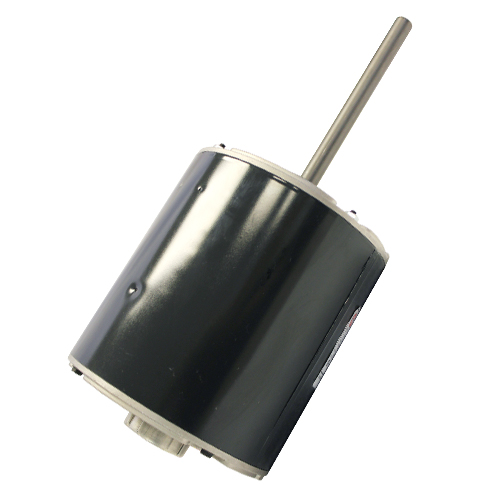

2201 - 0.5 HP - TENV - 1075 RPM

Catalog #: 2201
Model #:K055SYC7992012B

Details

Permanent Split Capacitor
Commercial Condenser Fan
5.6" Dia. Totally Enclosed
(60°C) Ambient Design
Hub or Stud mount with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
20.6
lbs
List Price Per Unit:
$558.00
  • Specifications
  • Technical Data
Model_Number
K055SYC7992012B
PRODUCT NAME
.5 HP - TENV - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TENV
HORSEPOWER
.5
KILOWATTS
0.4
POLES
6
NUMBER SPEEDS
1
RPM
1075
HERTZ
60
VOLTS PRIMARY
208-230/460 V
VOLTS
208
VOLTS 2
230
VOLTS 3
460
FRME
48
STATOR DIAMETER
5.5
STACK
2.5
MOUNTING
RING
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
10
RUNCAPVOLTS
370
SHIPPING WEIGHT
19
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
75.86
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
16
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
E
LOCKED ROTOR AMPS
8.86
FULL LOAD AMPS PRIMARY
3.2-3.1/1.6
SERVICE FACTOR AMPS PRIMARY
3.2-3.1/1.6
SHAFT CODE
Y
K055SYC7992012B
FHPO
V01333074
