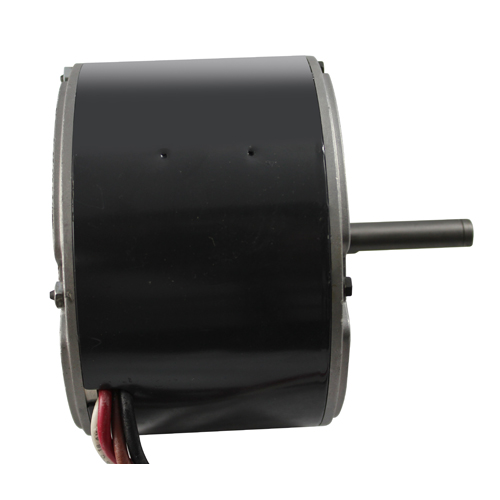

5450 - 0.2 HP - TEAO - 1075 RPM

Catalog #: 5450
Model #:K055SYH7997011B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Totally Enclosed Air Over
140°F (60°C) Ambient Design
Single Horsepower
Discount Symbol:
DS-3HAC
Unit Weight:
10.4
lbs
List Price Per Unit:
$227.00
  • Specifications
  • Technical Data
Model_Number
K055SYH7997011B
PRODUCT NAME
.2 HP - TEAO - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TEAO
HORSEPOWER
.2
KILOWATTS
0.2
POLES
6
NUMBER SPEEDS
1
RPM
1075
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
YZ
STATOR DIAMETER
5.5
STACK
1
MOUNTING
BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW SHAFT END
SERVICE FACTOR
1
RUNCAPMFD
3
RUNCAPVOLTS
370
SHIPPING WEIGHT
10
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
19.85
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
5.466
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
2.32
NEMA NOMINAL EFFICIENCY
61.4
FULL LOAD AMPS PRIMARY
1.2-1.3
SERVICE FACTOR AMPS PRIMARY
1-2-1.3
K055SYH7997011B
FHPO
V02815760
