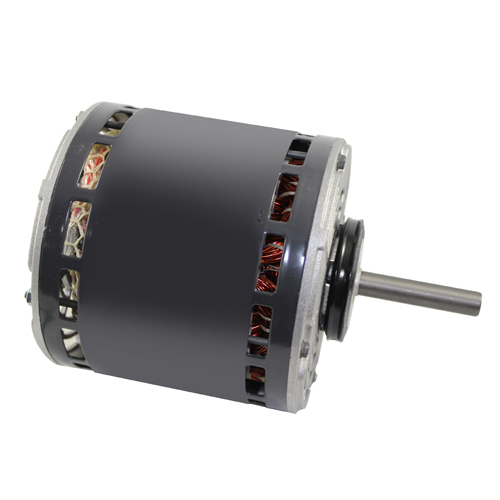

MOTOR

Catalog #: 3275
Model #:K055TMS9565011B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over
Special Mount for OEM
LENNOX OEM Replacement
Discount Symbol:
Unit Weight:
16.0
lbs
List Price Per Unit:
$333.00
  • Specifications
  • Technical Data
Model_Number
K055TMS9565011B
PRODUCT NAME
MOTOR
PHASETYPE
1
MOTOR ENCLOSURE
OPEN
HORSEPOWER
3/4 HP
KILOWATTS
0.6
POLES
6
NUMBER SPEEDS
5
RPM
1075 / 5 SPD
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.5
MOUNTING
HUB
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
40
RUNCAPVOLTS
370
SHIPPING WEIGHT
17
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
100.7
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
35.49
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
B
LOCKED ROTOR AMPS
18.73
FULL LOAD AMPS PRIMARY
10.0
SERVICE FACTOR AMPS PRIMARY
10.0
K055TMS9565011B
FHPO
