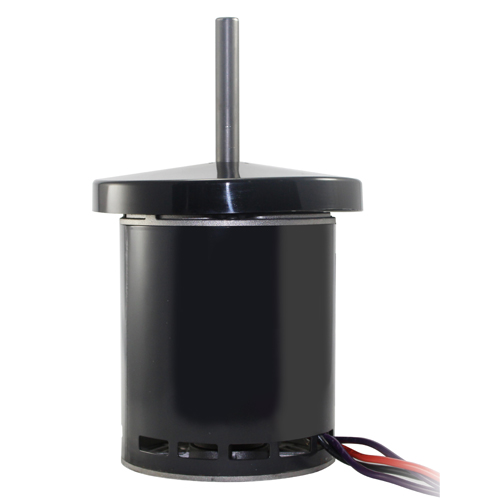

8055 - 1 HP - OAO - 1080 RPM

Catalog #: 8055
Model #:K055TNK9629011B

Details

Permanent Split Capacitor
Commercial Condenser Fan
5.6" Dia. Open Drip Proof
Automatic Thermal Overload Protector
Band Mount with Drip Shield
Discount Symbol:
DS-3HAC
Unit Weight:
24.09
lbs
List Price Per Unit:
$719.00
  • Specifications
  • Technical Data
Model_Number
K055TNK9629011B
PRODUCT NAME
1 HP - OAO - 1080
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OAO
HORSEPOWER
1
KILOWATTS
0.8
POLES
6
NUMBER SPEEDS
1
RPM
1080
HERTZ
60
VOLTS PRIMARY
460 V
VOLTS
460
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
3
MOUNTING
NONE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
15
RUNCAPVOLTS
370
SHIPPING WEIGHT
22
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
103.2
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
22.64
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
5.61
FULL LOAD AMPS PRIMARY
2.5
K055TNK9629011B
FHPO
V02836352
