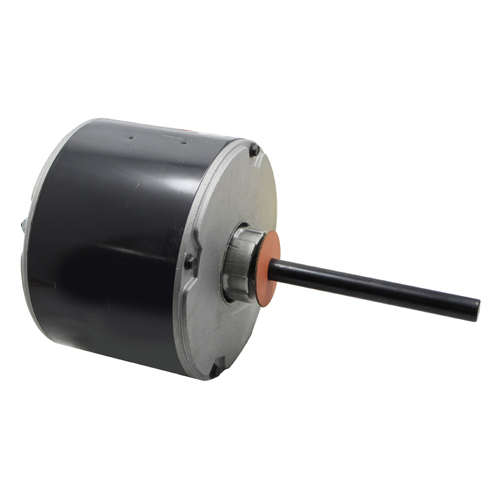

8069 - 1 HP - OPEN - 1080 RPM

Catalog #: 8069
Model #:K055TNR9651011B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Enclosed Air Over
Special Mount for OEM
LENNOX OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
18.1
lbs
List Price Per Unit:
$775.00
  • Specifications
  • Technical Data
Model_Number
K055TNR9651011B
PRODUCT NAME
1 HP - OPEN - 1080
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
1
KILOWATTS
0.8
POLES
6
NUMBER SPEEDS
1
RPM
1080
HERTZ
60
VOLTS PRIMARY
230 V
VOLTS
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
3
MOUNTING
NONE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
20
RUNCAPVOLTS
370
SHIPPING WEIGHT
18
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
113.9
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
22.35
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
11.72
FULL LOAD AMPS PRIMARY
4.9
K055TNR9651011B
FHPO
V01748283
