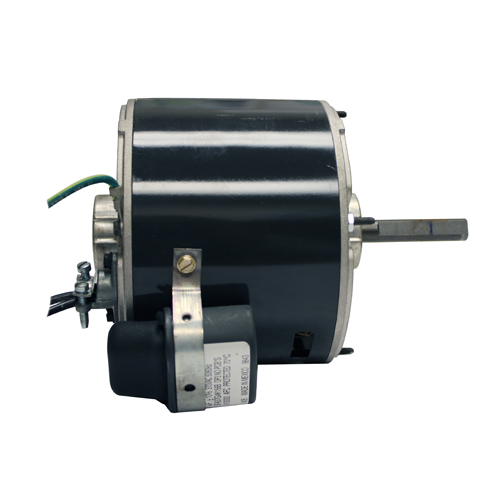

1527P - 0.167 HP - ODP - 1550 RPM

Catalog #: 1527P
Model #:K055WKK1087013B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over Enclosure
Belly Band Mount
Hub or Stud Mount with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
10.4
lbs
List Price Per Unit:
$296.00
  • Specifications
  • Technical Data
Model_Number
K055WKK1087013B
PRODUCT NAME
.167 HP - ODP - 1550
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ODP
HORSEPOWER
.167
KILOWATTS
0.1
POLES
4
NUMBER SPEEDS
1
RPM
1550
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
STATOR DIAMETER
5.5
STACK
0.75
MOUNTING
PERIPHERAL
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW LEAD END
RUNCAPMFD
3
RUNCAPVOLTS
370
SHIPPING WEIGHT
19
BREAKDOWN TORQUE
14.25
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
5.875
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
A
LOCKED ROTOR AMPS
2.51
FULL LOAD AMPS PRIMARY
1.4
SHAFT CODE
Y
K055WKK1087013B
FHPO
V01776732
