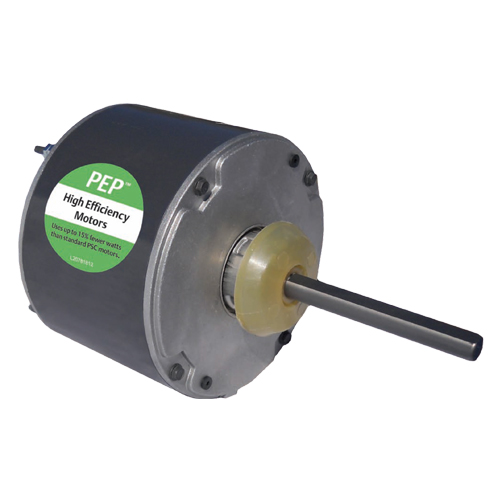

3738PEP - 0.5 HP - TEAO - 1115 RPM

Catalog #: 3738PEP
Model #:K055WRM0126012B

Details

PEP® High Efficiency Permanent Split Capacitor
High Ambient Condenser Fan
5.6" Dia. Totally Enclosed Air Over
70°C Ambient Design
Up to 76% efficiency design
Discount Symbol:
DS-3HAC
Unit Weight:
17.78
lbs
List Price Per Unit:
$434.00
  • Specifications
  • Technical Data
Model_Number
K055WRM0126012B
PRODUCT NAME
.5 HP - TEAO - 1115
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TEAO
HORSEPOWER
.5
KILOWATTS
0.4
POLES
6
NUMBER SPEEDS
1
RPM
1115
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
460 V
VOLTS
460
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.5
MOUNTING
STUD/BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
70
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
10
RUNCAPVOLTS
370
SHIPPING WEIGHT
18
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
66.17
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
15.89
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
LOCKED ROTOR AMPS
3.56
FULL LOAD AMPS PRIMARY
1.4
