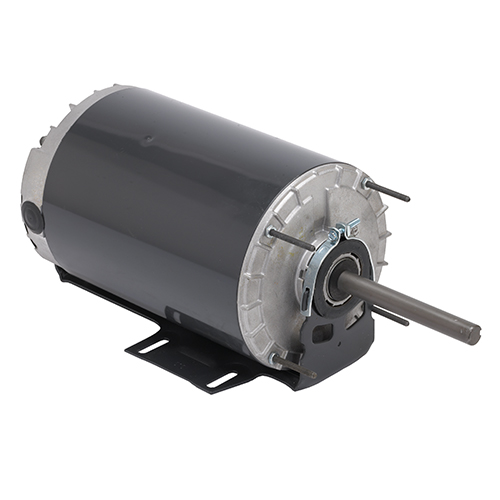

2896 - 1.5 HP - TENV - 1075 RPM

Catalog #: 2896
Model #:K0630WG3925892B

Details

Permanent Split Capacitor
Commercial Condenser Fan
6.3" Dia. Open and Totally Enclosed
Keyed Shaft
Resilient Base
Discount Symbol:
DS-3HAC
Unit Weight:
46.0
lbs
List Price Per Unit:
$823.00
  • Specifications
  • Technical Data
Model_Number
K0630WG3925892B
PRODUCT NAME
1.5 HP - TENV - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TENV
HORSEPOWER
1.5
KILOWATTS
1.1
POLES
6
NUMBER SPEEDS
1
RPM
1075
HERTZ
60
VOLTS PRIMARY
208-230/460 V
VOLTS
208
VOLTS 2
230
VOLTS 3
460
FRME
56
SHAFT CODE
Z
STATOR DIAMETER
6.3
STACK
3.97
MOUNTING
SQUARE FLANGE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
SHIPPING WEIGHT
45
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
160.2
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
5.14
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
22.88
FULL LOAD AMPS PRIMARY
7.5/3.8
SERVICE FACTOR AMPS PRIMARY
7.5/3.8
K0630WG3925892B
FHPO
V01269167
D04755717
