ASB116 - 4 HP - ODP - 3450 RPM

Catalog #: ASB116
Model #:K063DGN5174023J

Details

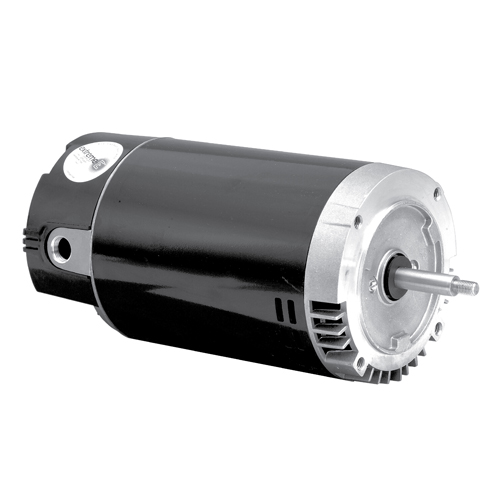

AQUA-SHIELD 56 Frame Pool & Spa Motor
Switchless Design 6.5" Frame Dia.
C-Flange Category "J"
Premium Efficient 7/16-20 Thread
THP Rated 1081 Design
Discount Symbol:
DS-FPS
Unit Weight:
52.0
lbs
List Price Per Unit:
$800.00
  • Specifications
  • Technical Data
Model_Number
K063DGN5174023J
PRODUCT NAME
4 HP - ODP - 3450
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ODP
HORSEPOWER
4
KILOWATTS
3
POLES
2
NUMBER SPEEDS
1
RPM
3450
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
56
SHAFT CODE
Y
STATOR DIAMETER
6.3
STACK
4.5
MOUNTING
SPECIAL
MOTOR TYPE
FHP
OPPOSITE END BEARING
6304
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CW DRIVE END
SERVICE FACTOR
1.25
RUNCAPMFD
50
RUNCAPVOLTS
370
SHIPPING WEIGHT
52
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
301.6
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
17.93
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
KVA CODE LETTER
H
LOCKED ROTOR AMPS
98.72
SERVICE FACTOR AMPS PRIMARY
21.0-19.4
K063DGN5174023J
FHPO
V02807307
D04759410
