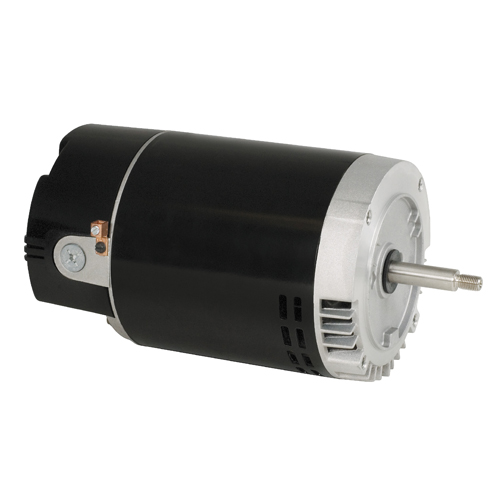

ASB668 - 0.75 HP - ODP - 3450 RPM

Catalog #: ASB668
Model #:K063EBA5230023J

Details

Pool Cleaner Replacement
Switchless Design 6.5" Diameter Categories P
Pool Cleaner
6.5" Diameter Category "P"
Two Compartment Product
Discount Symbol:
DS-FPS
Unit Weight:
23.0
lbs
List Price Per Unit:
$305.00
  • Specifications
  • Technical Data
Model_Number
K063EBA5230023J
PRODUCT NAME
.75 HP - ODP - 3450
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ODP
HORSEPOWER
.75
KILOWATTS
0.6
POLES
2
NUMBER SPEEDS
1
RPM
3450
HERTZ
60
VOLTS PRIMARY
230/115 V
VOLTS
230
VOLTS 2
115
FRME
56
SHAFT CODE
JZ
STATOR DIAMETER
6.3
STACK
1.75
MOUNTING
C-FACE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
50
ROTATION
CCW DRIVE END
SERVICE FACTOR
1.5
RUNCAPMFD
35
RUNCAPVOLTS
370
SHIPPING WEIGHT
23
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
72.29
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
14.84
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
L
LOCKED ROTOR AMPS
25.23
SERVICE FACTOR AMPS PRIMARY
6.0/12.0
K063EBA5230023J
FHPO
V02806199
D04830265
