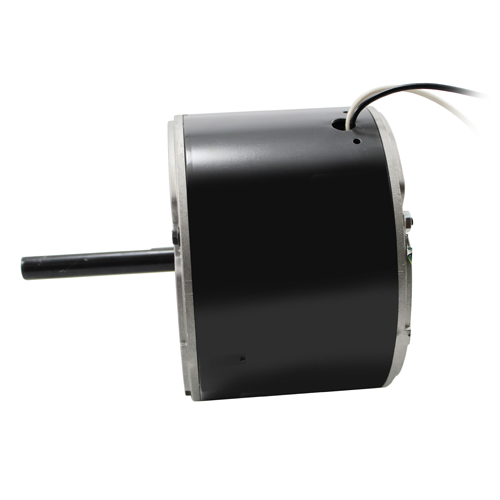

6124 - 0.25 HP - OPEN - 1550 RPM

Catalog #: 6124
Model #:KA55SCK7719803B

Details

Permanent Split Capacitor
Refrigeration Condenser Fan
5.6" Dia. Open Drip Proof
OEM Direct Replacement
Hub or Stud Mount with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
12.5
lbs
List Price Per Unit:
$327.00
  • Specifications
  • Technical Data
Model_Number
KA55SCK7719803B
PRODUCT NAME
.25 HP - OPEN - 1550
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.25
KILOWATTS
0.2
POLES
4
NUMBER SPEEDS
1
RPM
1550
HERTZ
60
VOLTS PRIMARY
230 V
VOLTS
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.5
MOUNTING
BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
13
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
25.38
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
9.967
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
3.95
FULL LOAD AMPS PRIMARY
2.1
KA55SCK7719803B
FHPO
V01244376
D04208068
