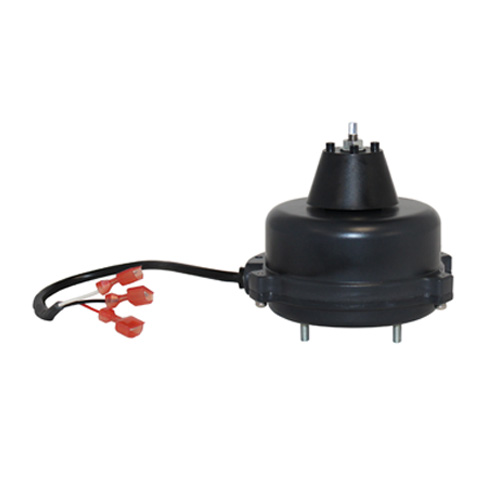

EC5409E - 1/15 - 1/25 HP - TEAO - 1550RPM

Catalog #: EC5409E
Model #:M035TBP1002011B

Details

RESCUE® 3.3" ECM
Walk-in Evaporator Motors
Up to 70% Efficiency
Dual voltage
11" Leads
Discount Symbol:
DS-3ECM
Unit Weight:
3.0
lbs
List Price Per Unit:
$195.00
  • Specifications
  • Technical Data
Model_Number
M035TBP1002011B
PRODUCT NAME
0 HP - - 0
VOLTS PRIMARY
115-230
MOTOR TYPE
FHP
STARTCAPMFD
N\A
SHIPPING WEIGHT
3
MODEL NUMBER
M035TBP1002011B
CATALOG NUMBER
EC5409E
PHASE TYPE
1_BPM
MOTOR ENCLOSURE
TEAO
HORSEPOWER
1/15 - 1/25
WATTS
50 - 30 W
POLES
4
POLES 2
8
NUMBER SPEEDS
VAR
RPM
1550RPM
RPM 2
775
HERTZ
60
HERTZ 2
50
VOLTS
115
VOLTS 2
230
FRAME
33
MOUNTING
Universal
AMBIENT
-40°C to 55°C
ROTATION
CCWOSE
SERVICE FACTOR
1
THERMAL PROTECTION
ELECTRONICALLY PROTECTED
INSULATION CLASS
A
FULL LOAD AMPS PRIMARY
0.5-0.72
M035TBP1002011B
FHPO
V01845653
