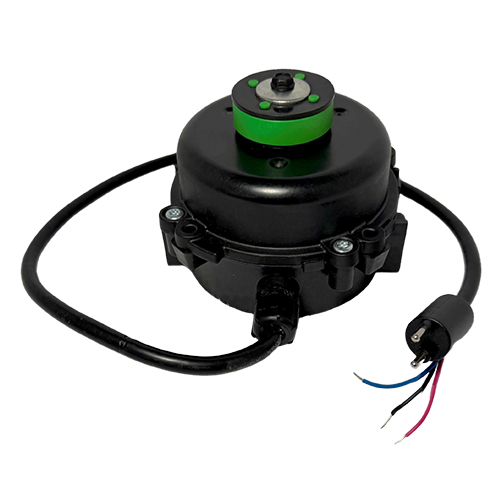

EC5414N - TEAO - 1550/1650RPM

Catalog #: EC5414N
Model #:M035TBT1005015B

Details

RESCUE® Refrigeration ECM
Refrigeration evaporator and condenser
Elco top mount and Hussmann back mount
Dual Voltage
IP67 Rated
Discount Symbol:
DS-3ECM
Unit Weight:
1.55
lbs
List Price Per Unit:
$130.00
  • Specifications
  • Technical Data
Model_Number
M035TBT1005015B
PRODUCT NAME
0 HP - - 0
STARTCAPMFD
N\A
VOLTS PRIMARY
115-230
MOTOR TYPE
FHP
SHIPPING WEIGHT
2
ROTATION
Reversible
WATTS
4-25 W
MODEL NUMBER
M035TBT1005015B
FULL LOAD AMPS PRIMARY
0.22-0.75A/0.15-0.45
AMBIENT
-40°C to 55°C
NUMBER SPEEDS
Var
MOTOR ENCLOSURE
TEAO
THERMAL PROTECTION
ELECTRONICALLY PROTECTED
HERTZ
60
MOUNTING
Universal
FRAME
33
CATALOG NUMBER
EC5414N
RPM
1550/1650RPM
PHASE TYPE
1_BRUSHLESS PERMANENT MAGNET
VOLTS
115
POLES
4
SERVICE FACTOR
1
VOLTS 2
230
M035TBT1005015B
FHPO
V01850723
