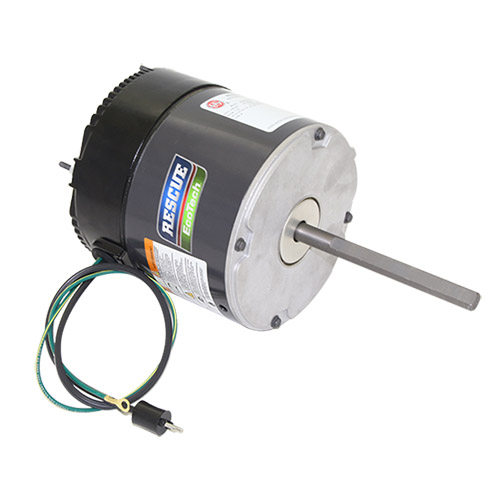

5563EOR - 0.333 HP - TEAO - 1145 RPM

Catalog #: 5563EOR
Model #:M055ESL1240012B

Details

RESCUE EcoTech® Refrigeration ECM
Refrigeration Evaporator
5.6" Dia. Totally Enclosed Air Over
1/3 – 1/5 HP 1075 RPM
Lyall Plug
Discount Symbol:
DS-3ECM
Unit Weight:
12.0
lbs
List Price Per Unit:
$350.00
  • Specifications
  • Technical Data
Model_Number
M055ESL1240012B
PRODUCT NAME
.333 HP - TEAO - 1145
PHASETYPE
1_BRUSHLESS PERMANENT MAGNET
MOTOR ENCLOSURE
TEAO
HORSEPOWER
.333
HORSEPOWER 2
0.2
POLES
10
NUMBER SPEEDS
1
RPM
1145
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.375
MOUNTING
BELLY BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
CCW LEAD END
SHIPPING WEIGHT
12
THERMAL PROTECTION
ELECTRONICALLY PROTECTED
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
FULL LOAD AMPS PRIMARY
2.5
SERVICE FACTOR AMPS PRIMARY
2.5
M055ESL1240012B
FHPO
V02829643
D04801416
