NPTQ270 - 2.7 HP - TEFC - 3450 RPM

Catalog #: NPTQ270
Model #:M055UFL0230013J

Details

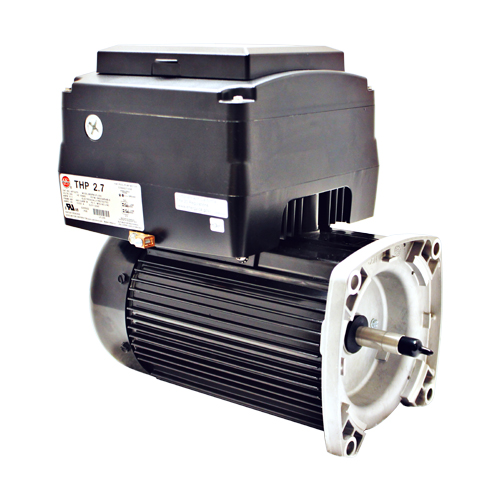

NEPTUNE Variable Speed Pool & Spa Motor
Premium Efficient BPM w/ Control
Square Flange Threaded Shaft Category S
Finned Aluminum Frame IPX5
Up to seven program schedules
Discount Symbol:
DS-FPS
Unit Weight:
34.0
lbs
List Price Per Unit:
$1,099.00
  • Specifications
  • Technical Data
Model_Number
M055UFL0230013J
PRODUCT NAME
2.7 HP - TEFC - 3450
PHASETYPE
1_BRUSHLESS PERMANEN
MOTOR ENCLOSURE
TEFC
HORSEPOWER
2.7
POLES
10
NUMBER SPEEDS
1
RPM
3450
HERTZ
50
HERTZ 2
60
VOLTS PRIMARY
230 V
VOLTS
230
FRME
48
SHAFT CODE
Y
STACK
2.875
MOUNTING
SQUARE FLANGE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6304
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CCW DRIVE END
SERVICE FACTOR
1
SHIPPING WEIGHT
34
THERMAL PROTECTION
ELECTRONICALLY
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
KVA CODE LETTER
A
NEMA NOMINAL EFFICIENCY
81.5
FULL LOAD AMPS PRIMARY
11.1
M055UFL0230013J
FHPO
V02827226
D04827229
