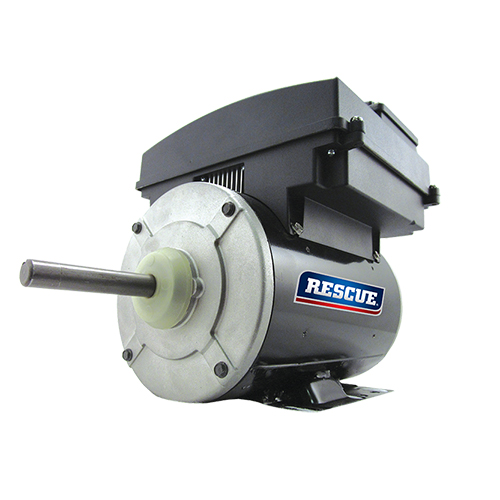

6362EO - 2.25 HP - TEAO - 300 RPM

Catalog #: 6362EO
Model #:M063BNH0168015B

Details

RESCUE EcoTech® Outdoor 56 ECM
Three Phase Commercial Condenser
6.3" Dia. Totally Enclosed Air Over
Integrated controller 0-10 Vdc Inputs
Rigid Base Mount
Discount Symbol:
DS-3ECM
Unit Weight:
56.0
lbs
List Price Per Unit:
$1,650.00
  • Specifications
  • Technical Data
Model_Number
M063BNH0168015B
PRODUCT NAME
2.25 HP - TEAO - 300
PHASETYPE
3_POLYPHASE - SPEED
MOTOR ENCLOSURE
TEAO
HORSEPOWER
2.25
POLES
4
NUMBER SPEEDS
1
RPM
300
RPM 2
1200
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
460 V
VOLTS
460
FRME
56
SHAFT CODE
HZ
STATOR DIAMETER
6.3
STACK
4.5
MOUNTING
RIGID
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
65
ROTATION
REVERSIBLE
SERVICE FACTOR
1
SHIPPING WEIGHT
56
THERMAL PROTECTION
ELECTRONICALLY
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
A
NEMA NOMINAL EFFICIENCY
2
FULL LOAD AMPS PRIMARY
2.7
M063BNH0168015B
FHPO
V02819021
D04778438
