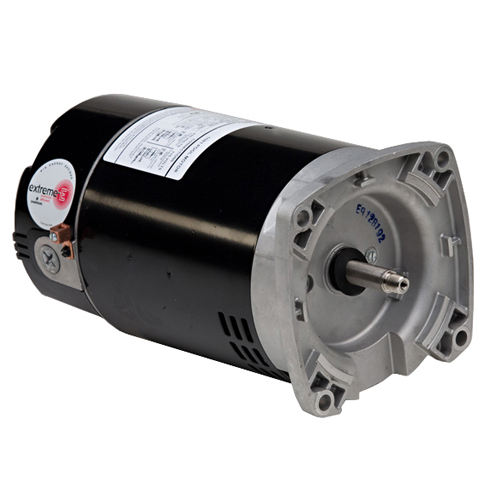

EH635 - 1 HP - ODP - 3450 RPM

Catalog #: EH635
Model #:P063GEL4517014J

Details

Three Phase Pool & Spa
Square & C-Face Flange
Square Flange Full Service Factor Full Rated
Discount Symbol:
DS-FPS
Unit Weight:
26.0
lbs
List Price Per Unit:
$383.00
  • Specifications
  • Technical Data
Model_Number
P063GEL4517014J
PRODUCT NAME
1 HP - ODP - 3450
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
1
KILOWATTS
0.8
POLES
2
NUMBER SPEEDS
1
RPM
3450
RPM 2
2850
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
208-230/460 V
VOLTS
208
VOLTS 2
230
VOLTS 3
460
FRME
56
SHAFT CODE
Y
STATOR DIAMETER
6.3
STACK
1.375
MOUNTING
SQUARE FLANGE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
50
ROTATION
CW LEAD END REV
SERVICE FACTOR
1.65
SHIPPING WEIGHT
25
THERMAL PROTECTION
NONE
BREAKDOWN TORQUE
110
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
63.21
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
L
LOCKED ROTOR AMPS
22.02
SERVICE FACTOR AMPS PRIMARY
4.8-4.6/2.3
RPM 4
2850
P063GEL4517014J
FHPO
V01770385
