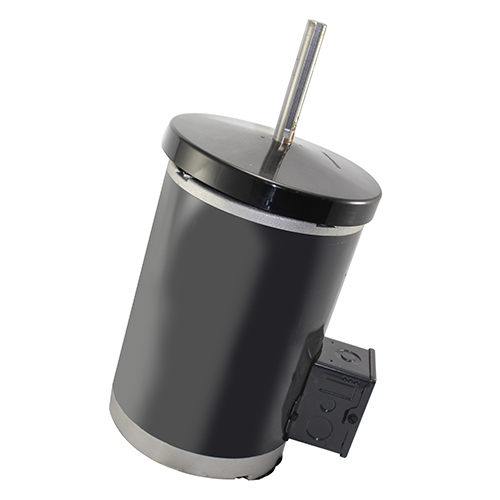

1816 - 1 HP - OPEN - 1140 RPM

Catalog #: 1816
Model #:P063TCT3807015B

Details

Three Phase
Commercial Condenser Fan
6.3" Dia. Enclosed Air Over
Special Mount for OEM
CARRIER OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
39.25
lbs
List Price Per Unit:
$563.00
  • Specifications
  • Technical Data
Model_Number
P063TCT3807015B
PRODUCT NAME
1 HP - OPEN - 1140
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
OPEN
HORSEPOWER
1
KILOWATTS
0.8
POLES
6
NUMBER SPEEDS
1
RPM
1140
HERTZ
60
VOLTS PRIMARY
200-230/460 V
VOLTS
200
VOLTS 2
230
VOLTS 3
460
FRME
56
SHAFT CODE
Z
STATOR DIAMETER
6.3
STACK
3.47
MOUNTING
BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
60
ROTATION
REVERSIBLE
SERVICE FACTOR
1
SHIPPING WEIGHT
35
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
327.9
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
216.5
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
25.15
FULL LOAD AMPS PRIMARY
6.0/3.0
P063TCT3807015B
FHPO
V01339758
D04295271
