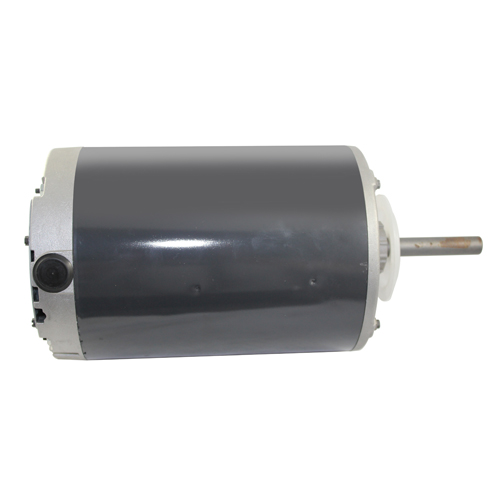

8058 - 1 HP - OAO - 1140 RPM

Catalog #: 8058
Model #:P063TNN4087015B

Details

Three Phase
Commercial Condenser Fan
Open Enclosure
50C Deg ambient band mount
OEM Replacement for Lennox
Discount Symbol:
DS-3HAC
Unit Weight:
32.0
lbs
List Price Per Unit:
$624.00
  • Specifications
  • Technical Data
Model_Number
P063TNN4087015B
PRODUCT NAME
1 HP - OAO - 1140
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
OAO
HORSEPOWER
1
KILOWATTS
0.8
POLES
6
NUMBER SPEEDS
1
RPM
1140
HERTZ
60
VOLTS PRIMARY
200-230/460 V
VOLTS
200
VOLTS 2
230
VOLTS 3
460
FRME
56
SHAFT CODE
Y
STATOR DIAMETER
6.3
STACK
3
MOUNTING
NONE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
50
ROTATION
REVERSIBLE
SERVICE FACTOR
1
SHIPPING WEIGHT
32
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
169.5
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
113.7
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
H
LOCKED ROTOR AMPS
13.33
FULL LOAD AMPS PRIMARY
3.6/1.8
SERVICE FACTOR AMPS PRIMARY
3.6/1.8
P063TNN4087015B
FHPO
V01747767
