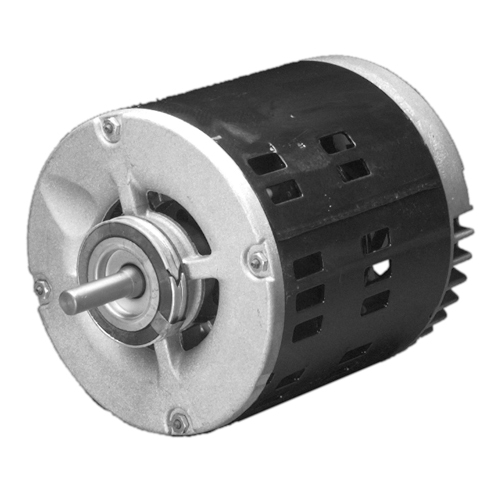

6771 - 0.75 HP - OPEN - 1725 RPM

Catalog #: 6771
Model #:S063STJ7129801B

Details

Split Phase
Single Speed Evaporative Cooler
6.3" Dia. Open Dripproof (ODP)
Clockwise Rotation on Shaft End
Hub Mount Add KIT51 for Base
Discount Symbol:
DS-3HAC
Unit Weight:
19.9
lbs
List Price Per Unit:
$326.00
  • Specifications
  • Technical Data
Model_Number
S063STJ7129801B
PRODUCT NAME
.75 HP - OPEN - 1725
PHASETYPE
1_SPLIT PHASE
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.75
KILOWATTS
0.6
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
230 V
VOLTS
230
FRME
56
SHAFT CODE
Y
STATOR DIAMETER
6.3
STACK
1.75
MOUNTING
HUB
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CW SHAFT END
SERVICE FACTOR
1
SHIPPING WEIGHT
20
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
86.48
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
41.41
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
L
LOCKED ROTOR AMPS
28.33
FULL LOAD AMPS PRIMARY
5.4
SERVICE FACTOR AMPS PRIMARY
5.4
