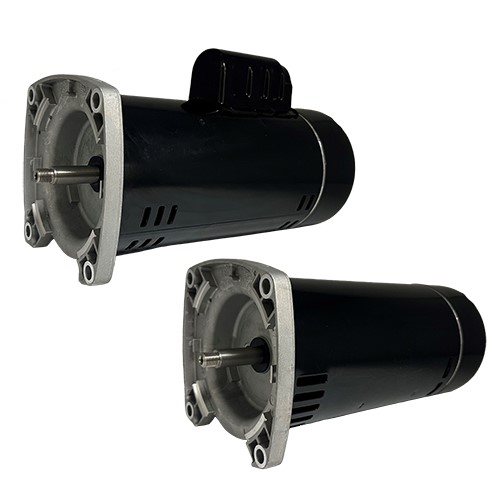

MOTOR

Catalog #: JS1502-2V
Model #:T055CND1419013J

Details

Special Application
Single Phase Open Dripproof (ODP)
Jet Pump Square Flange
Capacitor Start
Two Compartment Product EZ-Access™ Motors
Discount Symbol:
Unit Weight:
27.2
lbs
List Price Per Unit:
$301.00
  • Specifications
  • Technical Data
Model_Number
T055CND1419013J
PRODUCT NAME
MOTOR
PHASETYPE
1
MOTOR ENCLOSURE
ODP
HORSEPOWER
1 1/2 HP
KILOWATTS
1.1
POLES
2
NUMBER SPEEDS
1
RPM
3450 RPM
HERTZ
60
VOLTS PRIMARY
115/230 V
VOLTS
115
VOLTS 2
230
STATOR DIAMETER
5.5
STACK
3
MOUNTING
SQUARE FLANGE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CCW DRIVE END
SERVICE FACTOR
1.5
RUNCAPMFD
15
RUNCAPVOLTS
370
STARTCAPMFD
208
SHIPPING WEIGHT
27
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
98.82
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
42.99
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
J
LOCKED ROTOR AMPS
78.89
FULL LOAD AMPS PRIMARY
14.8/7.4
SERVICE FACTOR AMPS PRIMARY
19.6/9.8
SHAFT CODE
Y
T055CND1419013J
FHPO
