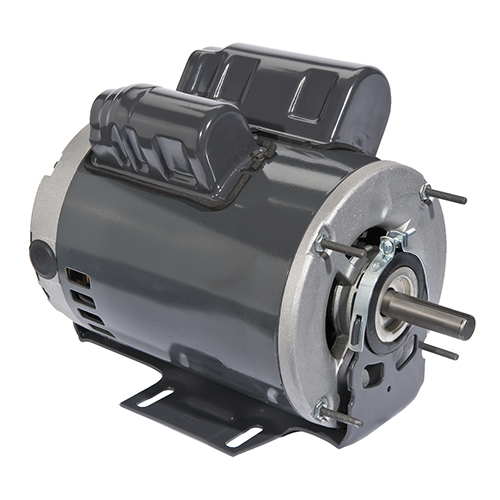

399 - 2 HP - ODP - 3450 RPM

Catalog #: 399
Model #:T063TRA1495012B

Details

Capacitor Start and Capacitor Run
Belted Fan & Blower
56 Frame Open Dripproof (ODP)
Automatic Thermal Overload Protector
Resilient Base
Discount Symbol:
DS-3HAC
Unit Weight:
32.0
lbs
List Price Per Unit:
$438.00
  • Specifications
  • Technical Data
Model_Number
T063TRA1495012B
PRODUCT NAME
2 HP - ODP - 3450
PHASETYPE
1_CAPACITOR START -
MOTOR ENCLOSURE
ODP
HORSEPOWER
2
KILOWATTS
1.5
POLES
2
NUMBER SPEEDS
1
RPM
3450
HERTZ
60
VOLTS PRIMARY
115/208-230 V
VOLTS
115
VOLTS 2
208
VOLTS 3
230
FRME
56
STATOR DIAMETER
6.3
STACK
2.75
MOUNTING
RESILIENT BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
CW DRIVE END REV
SERVICE FACTOR
1.2
RUNCAPMFD
30
RUNCAPVOLTS
370
STARTCAPMFD
208
SHIPPING WEIGHT
37
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
118
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
63.23
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
G
LOCKED ROTOR AMPS
87.42
NEMA NOMINAL EFFICIENCY
78.4
FULL LOAD AMPS PRIMARY
18.4/10.1-9.2
SERVICE FACTOR AMPS PRIMARY
20.3/11.2-10.2
SHAFT CODE
Y
T063TRA1495012B
FHPO
V01754717
D04754720
