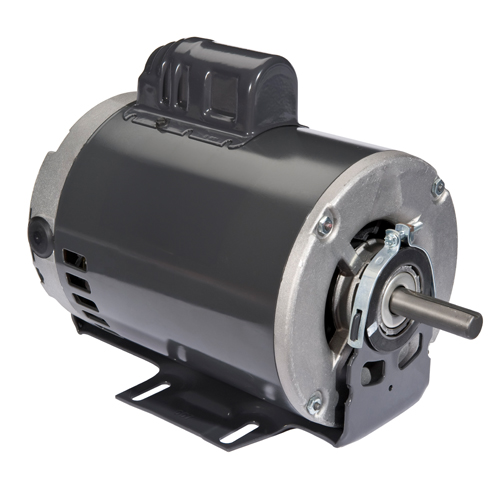

• 1769 - 1 HP - ODP - 1725 RPM

1769 - 1 HP - ODP - 1725 RPM

  • Catalog #: 1769
  • Model #: C063SCL3818972B
  • Discount Symbol: DS-3HAC
  • List Price: $643.00
  • Capacitor Start Capacitor Run
  • Belted Fan & Blower
  • Open Dripproof (ODP)
  • Resilient Base
  • Single Speed
  • Catalog Page (PDF)
  • U/M: EA
  • Total Weight: 34.4 lbs
Specification
Model_Number:C063SCL3818972B
PRODUCT NAME:1 HP - ODP - 1725
PHASETYPE:1_CAPACITOR START
MOTOR ENCLOSURE:ODP
HORSEPOWER:1
KILOWATTS:0.8
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115/208-230 V
VOLTS :115
VOLTS 2:208
VOLTS 3:230
FRME :56
STATOR DIAMETER:6.3
STACK:2.75
MOUNTING:RESILIENT
MOTOR TYPE:FHP
OPPOSITE END BEARING:SLEEVE
SHAFT END BEARING:SLEEVE
ROTATION:REVERSIBLE
SERVICE FACTOR:1.2
STARTCAPMFD:340.2
SHIPPING WEIGHT:30
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:134.3
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:113.7
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:A
LOCKED ROTOR AMPS:55.38
FULL LOAD AMPS PRIMARY:14.0/7.0
Technical Data
  • Dimension Print
