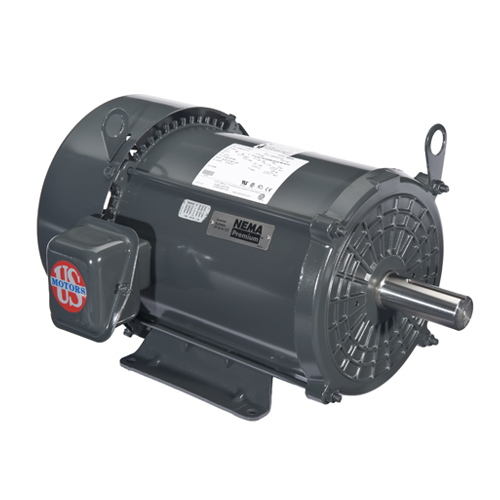

S5P1A - 5 HP - TE - 3515 RPM

Catalog #: S5P1A
Model #:DA52

Details

Three Phase
General Purpose
Totally Enclosed Fan Cooled
Premium Efficient STEEL EDGE®
Rigid Base
Discount Symbol:
DS-3RST
Unit Weight:
65.0
lbs
List Price Per Unit:
$715.00
  • Specifications
  • Technical Data
Model_Number
DA52
PRODUCT NAME
5 HP - TE - 3515
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TE
HORSEPOWER
5
KILOWATTS
3.7
POLES
2
NUMBER SPEEDS
1
RPM
3515
RPM 2
3515
RPM 3
3490
HERTZ
60
VOLTS PRIMARY
208-230/460
VOLTS
460
VOLTS 2
230
VOLTS 3
208
FRME
184
SHAFT CODE
T
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
SE
OPPOSITE END BEARING
6205-2Z-J/C3
SHAFT END BEARING
6206-2Z-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
65
BREAKDOWN TORQUE
300
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
237
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
J
LOCKED ROTOR AMPS
46
NEMA NOMINAL EFFICIENCY
88.5
FULL LOAD AMPS PRIMARY
13.6-12.1/6.1
SERVICE FACTOR AMPS PRIMARY
16-14/7
DA52
IHPO
07-2047
109144
