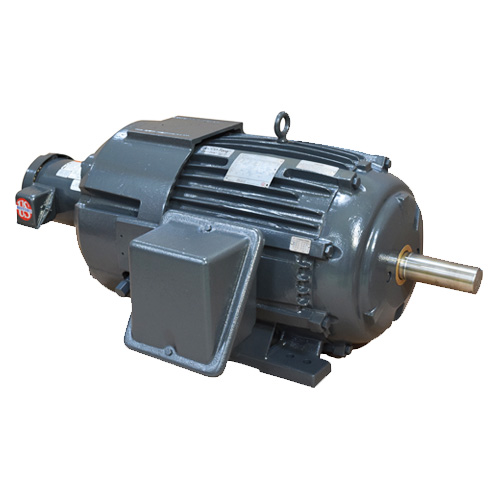

B60T2B - 60 HP - TEBC - 1790 RPM

Catalog #: B60T2B
Model #:FP47

Details

ACCU-Torq
Totally Enclosed Blower Cooled (TEBC) & Totally Enclosed Non-Ventilated (TENV)
Vector Duty
5000:1 Constant Torque
Footed
Discount Symbol:
DS-VST
Unit Weight:
1020.0
lbs
List Price Per Unit:
$10,178.00
  • Specifications
  • Technical Data
Model_Number
FP47
PRODUCT NAME
60 HP - TEBC - 1790
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEBC
HORSEPOWER
60
KILOWATTS
44.7
POLES
4
NUMBER SPEEDS
1
RPM
1790
RPM 2
1790
HERTZ
60
VOLTS PRIMARY
230/460
VOLTS
460
VOLTS 2
230
FRME
364
SHAFT CODE
T
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
TCBI
OPPOSITE END BEARING
6313-J/C3
SHAFT END BEARING
6313-J/C3
AMBIENT
40
SERVICE FACTOR
1
STARTCAPMFD
N\A
SHIPPING WEIGHT
1020
BREAKDOWN TORQUE
285
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
223
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
H
KVA CODE LETTER
J
LOCKED ROTOR AMPS
548.8
NEMA NOMINAL EFFICIENCY
95.4
FULL LOAD AMPS PRIMARY
137/69
FP47
IHPO
07-3274
109144
