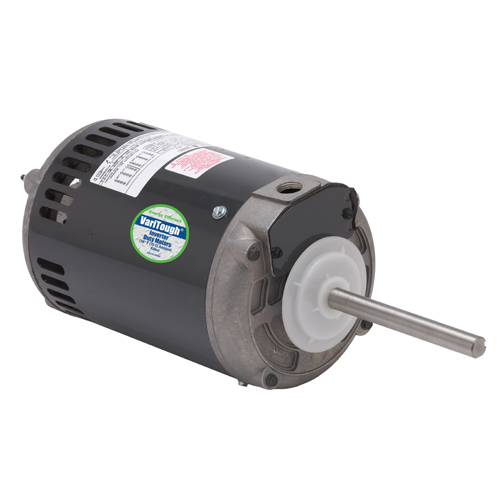

8987VG - 2 HP - OAO - 1140 RPM

Catalog #: 8987VG
Model #:J063BKB0251015B

Details

VariTough® Three Phase Inverter Duty
Commercial Condenser Fan
6.3" Dia. Open Dripproof Shaft Up
70°C Max Ambient Belly Band Mount
AEGIS® Shaft Grounding Ring included and mounted
Discount Symbol:
DS-3HAC
Unit Weight:
48.0
lbs
List Price Per Unit:
$752.00
  • Specifications
  • Technical Data
Model_Number
J063BKB0251015B
PRODUCT NAME
2 HP - OAO - 1140
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
OAO
HORSEPOWER
2
KILOWATTS
1.5
POLES
6
NUMBER SPEEDS
1
RPM
1140
HERTZ
60
VOLTS PRIMARY
208-230/460 V
VOLTS
208
VOLTS 2
230
VOLTS 3
460
FRME
56
SHAFT CODE
YZ
STATOR DIAMETER
6.3
STACK
4.5
MOUNTING
BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
70
ROTATION
REVERSIBLE
SERVICE FACTOR
1
SHIPPING WEIGHT
48
THERMAL PROTECTION
T-STAT
BREAKDOWN TORQUE
498.6
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
323.5
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
KVA CODE LETTER
K
LOCKED ROTOR AMPS
32.62
NEMA NOMINAL EFFICIENCY
85.5
FULL LOAD AMPS PRIMARY
7.8-7.8/3.9
J063BKB0251015B
FHPO
V01794300
D04775062
