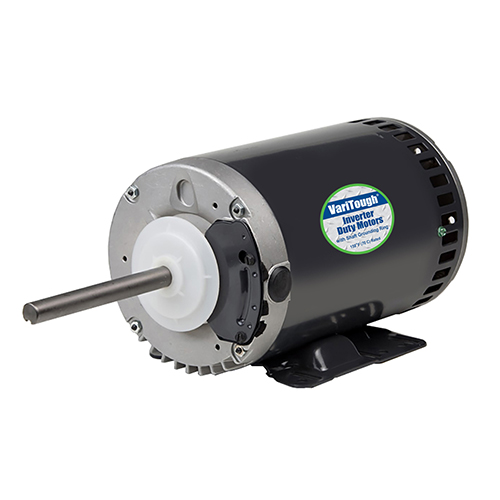

1821V - 1.5 HP - OAO - 1140 RPM

Catalog #: 1821V
Model #:J063BKH0197015B

Details

VariTough® Three Phase Inverter Duty
Commercial Condenser Fan
6.3" Dia. Open Dripproof Shaft Up
70 C Ambient Rigid Base
Kit 21 for Shaft Grounding Ring
Discount Symbol:
DS-3HAC
Unit Weight:
43.5
lbs
List Price Per Unit:
$600.00
  • Specifications
  • Technical Data
Model_Number
J063BKH0197015B
PRODUCT NAME
1.5 HP - OAO - 1140
PHASETYPE
3_POLYPHASE
MOTOR ENCLOSURE
OAO
HORSEPOWER
1.5
KILOWATTS
1.1
POLES
6
NUMBER SPEEDS
1
RPM
1140
HERTZ
60
VOLTS PRIMARY
208-230/460 V
VOLTS
208
VOLTS 2
230
VOLTS 3
460
FRME
56
SHAFT CODE
YZ
STATOR DIAMETER
6.3
STACK
3.97
MOUNTING
RIGID BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
70
ROTATION
REVERSIBLE
SERVICE FACTOR
1
SHIPPING WEIGHT
32
THERMAL PROTECTION
T-STAT
BREAKDOWN TORQUE
369.1
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
241.1
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
KVA CODE LETTER
H
LOCKED ROTOR AMPS
24.37
NEMA NOMINAL EFFICIENCY
84
FULL LOAD AMPS PRIMARY
5.3-5.3/2.6
J063BKH0197015B
FHPO
V01776036
D04775062
