• 5440H - 0.125 HP - ENCLOSED - 1075 RPM

5440H - 0.125 HP - ENCLOSED - 1075 RPM

  • Catalog #: 5440H
  • Model #: K048MAH0158012B
  • Discount Symbol: DS-3HAC
  • List Price: $142.00

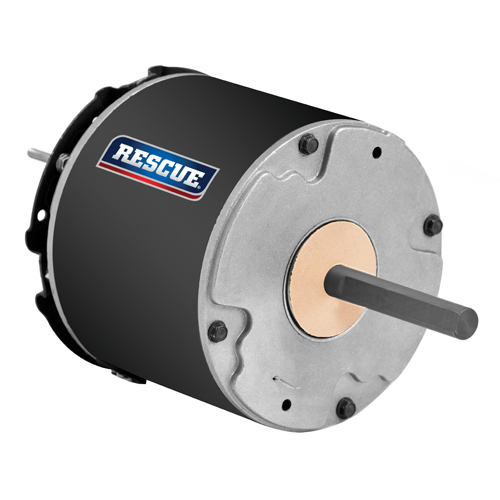

  • RESCUE® Permanent Split Capacitor Motor
  • MOJAVE® 70C High Ambient Condenser Fan
  • 5.0" Dia. Totally Enclosed Air Over
  • EZ-FIT® Mounting Multi-Horsepower
  • 4.3" 4.4" and 4.6" Bolt Circle Dia.
  • Catalog Page (PDF)
  • U/M: EA
  • Total Weight: 7.95 lbs
Specification
Model_Number:K048MAH0158012B
PRODUCT NAME:.125 HP - ENCLOSED - 1075
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:ENCLOSED
HORSEPOWER:.125
HORSEPOWER 2:0.083
POLES:6
NUMBER SPEEDS:1
RPM:1075
HERTZ:60
VOLTS PRIMARY:208-230 V
VOLTS :208
VOLTS 2:230
FRME :42
SHAFT CODE:Y
STATOR DIAMETER:4.8
STACK:1.25
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:70
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1
RUNCAPMFD:5
RUNCAPVOLTS:370
SHIPPING WEIGHT:8
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:16.56
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:6.129
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
LOCKED ROTOR AMPS:1.81
FULL LOAD AMPS PRIMARY:.8
Technical Data
  • Dimension Print
