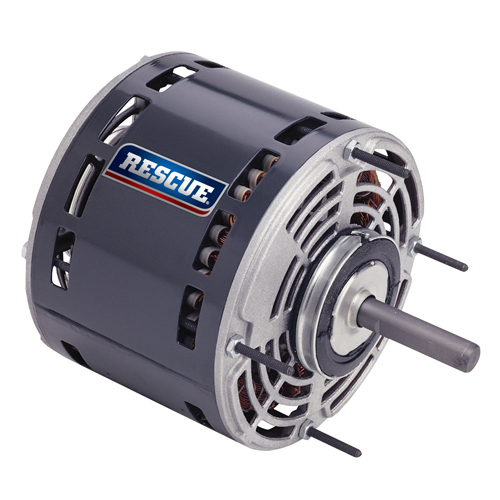

• 5471 - 0.75 HP - OPAO - 1075 RPM

5471 - 0.75 HP - OPAO - 1075 RPM

  • Catalog #: 5471
  • Model #: K055DWJ1298012B
  • Discount Symbol: DS-3HAC
  • List Price: $245.00
  • RESCUE® Permanent Split Capacitor Motor
  • Direct Drive Blower
  • 5.6" Dia. Open Air Over
  • Multi-Horsepower
  • Mounting shell holes with screws
  • Catalog Page (PDF)
  • U/M: EA
  • Total Weight: 19 lbs
Specification
Model_Number:K055DWJ1298012B
PRODUCT NAME:.75 HP - OPAO - 1075
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:OPAO
HORSEPOWER:.75
KILOWATTS:0.6
POLES:6
NUMBER SPEEDS:4
RPM:1075
HERTZ:60
VOLTS PRIMARY:208-230 V
VOLTS :208
VOLTS 2:230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:2.75
MOUNTING:RING/STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:6201
SHAFT END BEARING:6201
AMBIENT:40
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1
RUNCAPMFD:20
RUNCAPVOLTS:370
SHIPPING WEIGHT:19
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:85.13
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:26.29
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:B
LOCKED ROTOR AMPS:8.06
FULL LOAD AMPS PRIMARY:4.1
SERVICE FACTOR AMPS PRIMARY:4.1
Technical Data
  • Dimension Print
