5430 - 0.333 HP - TEAO - 1075 RPM

Catalog #: 5430
Model #:K055LMJ2478012B

Details

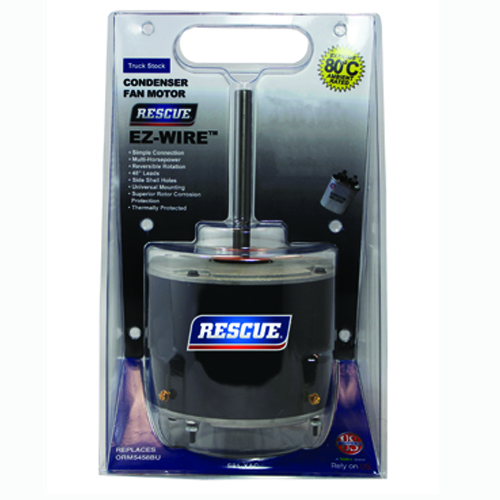

RESCUE® EZ-Wire™ Permanent Split Capacitor
80°C High Ambient Condenser Fan
5.6" Dia. Totally Enclosed Air Over
Multi-Horsepower Clear Packaging
U.S.A. made capacitors included
Discount Symbol:
DS-3HAC
Unit Weight:
38.0
lbs
List Price Per Unit:
$162.00
  • Specifications
  • Technical Data
Model_Number
K055LMJ2478012B
PRODUCT NAME
.333 HP - TEAO - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TEAO
HORSEPOWER
.333
HORSEPOWER 2
0.167
KILOWATTS
0.3
POLES
6
NUMBER SPEEDS
1
RPM
1075
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.5
MOUNTING
STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
6201
SHAFT END BEARING
6201
AMBIENT
80
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
7.5
RUNCAPVOLTS
370
SHIPPING WEIGHT
38
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
37.24
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
7.08
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
LOCKED ROTOR AMPS
4.29
FULL LOAD AMPS PRIMARY
2.2
SERVICE FACTOR AMPS PRIMARY
2.2
K055LMJ2478012B
FHPO
V02811794
