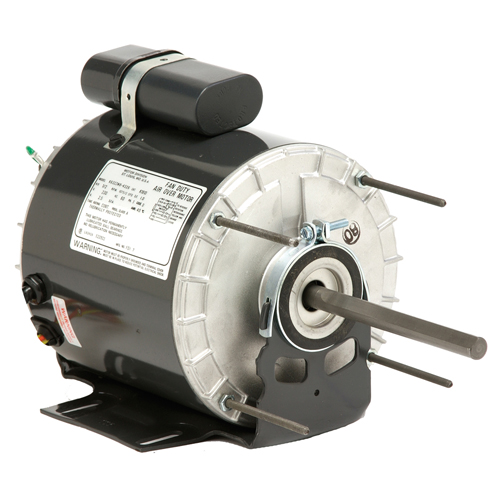

• 1255 - 0.25 HP - TEAO - 1725 RPM

1255,TEAO,1PH,STD

  • Catalog #: 1255
  • Model #: K055RJL1991012B
  • Discount Symbol: DS-3HAC
  • List Price: $175.00
  • Direct Drive Blower
  • Permanent Split Capacitor
  • Totally Enclosed Air Over (TEAO)
  • Resilient/Stud Mount
  • Catalog Page (PDF)
  • U/M: EA
  • Total Weight: 15.8 lbs
Specification
Model_Number:K055RJL1991012B
PRODUCT NAME:.25 HP - - 1725
PHASETYPE:1_PHASE
HORSEPOWER:.25
KILOWATTS:0.2
POLES:4
NUMBER SPEEDS:1
RPM:1725
HERTZ:60
VOLTS PRIMARY:115/230
VOLTS :115
VOLTS 2:230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:1.75
MOTOR TYPE:FHP
OPPOSITE END BEARING:6203
SHAFT END BEARING:6203
AMBIENT:40
ROTATION:CCW LE REV
RUNCAPMFD:7.5
RUNCAPVOLTS:440
SHIPPING WEIGHT:16
BREAKDOWN TORQUE:27.28
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:3.089
LOCKED ROTOR TORQUE UOM:OZFT
LOCKED ROTOR AMPS:10.53
FULL LOAD AMPS PRIMARY:2.5/1.3
Technical Data
  • Dimension Print
