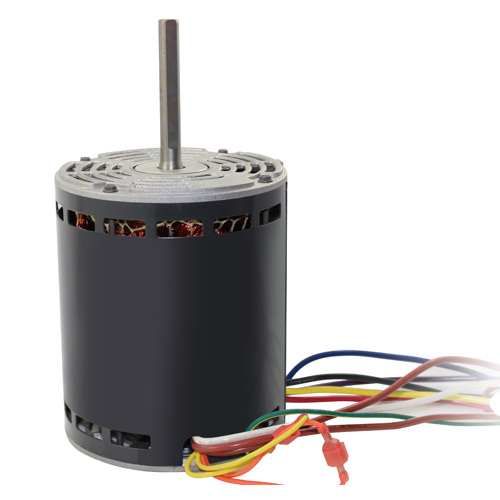

2553 - 1 HP - OPEN - 1100 RPM

Catalog #: 2553
Model #:K055TFJ8673012B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia.
Open Air Over
Belly Band Mount
Discount Symbol:
DS-3HAC
Unit Weight:
21.82
lbs
List Price Per Unit:
$542.00
  • Specifications
  • Technical Data
Model_Number
K055TFJ8673012B
PRODUCT NAME
1 HP - OPEN - 1100
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
1
KILOWATTS
0.8
POLES
6
NUMBER SPEEDS
3
RPM
1100
HERTZ
60
VOLTS PRIMARY
460 V
VOLTS
460
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
3
MOUNTING
BAND
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
25
RUNCAPVOLTS
370
SHIPPING WEIGHT
23
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
119.1
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
29.9
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
6.14
FULL LOAD AMPS PRIMARY
3.3
K055TFJ8673012B
FHPO
V02822840
