• 1875H - 0.333 HP - TEAO - 825 RPM

1875H - 0.333 HP - TEAO - 825 RPM

  • Catalog #: 1875H
  • Model #: K055WGG0948012B
  • Discount Symbol: DS-3HAC
  • List Price: $196.00

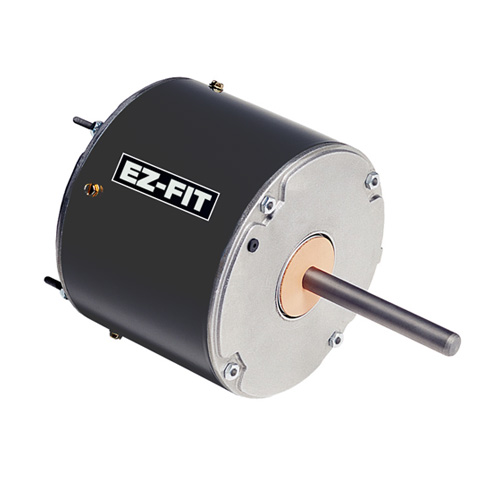

  • EZ-FIT® Permanent Split Capacitor Motor
  • High Ambient Condenser Fan
  • 5.6" Dia. Totally Enclosed Air Over
  • 70 C Ambient Multi-Horsepower
  • Mounting shell holes with screws
  • Catalog Page (PDF)
  • U/M: EA
  • Total Weight: 18.4 lbs
Specification
Model_Number:K055WGG0948012B
PRODUCT NAME:.333 HP - TEAO - 825
PHASETYPE:1_PERMANENT SPLIT CA
MOTOR ENCLOSURE:TEAO
HORSEPOWER:.333
HORSEPOWER 2:0.2
POLES:8
NUMBER SPEEDS:1
RPM:825
HERTZ:60
VOLTS PRIMARY:208-230 V
VOLTS :208
VOLTS 2:230
FRME :48
SHAFT CODE:Y
STATOR DIAMETER:5.5
STACK:2.25
MOUNTING:STUD
MOTOR TYPE:FHP
OPPOSITE END BEARING:BALL
SHAFT END BEARING:BALL
AMBIENT:70
ROTATION:CCW LEAD END REV
SERVICE FACTOR:1
RUNCAPMFD:7.5
RUNCAPVOLTS:440
SHIPPING WEIGHT:17
THERMAL PROTECTION:AUTOMATIC RESET
BREAKDOWN TORQUE:50.7
BREAKDOWN TORQUE UOM:OZFT
LOCKED ROTOR TORQUE:9.619
LOCKED ROTOR TORQUE UOM:OZFT
INSULATION CLASS:F
LOCKED ROTOR AMPS:4.25
FULL LOAD AMPS PRIMARY:2.4-1.4
SERVICE FACTOR AMPS PRIMARY:2.4-1.4
Technical Data
  • Dimension Print
