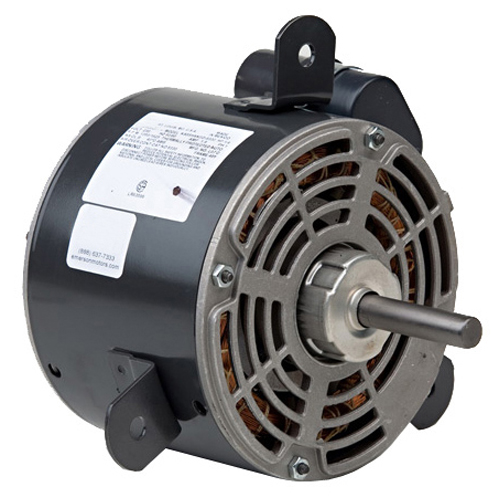

8330,OPEN,1PH,STD

Catalog #: 8330
Model #:KA55KGD8330613B

Details

Permanent Split Capacitor
Refrigeration Condenser Fan
5.6" Dia. Open Drip Proof
OEM Direct Replacement
3 Lug Mount with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
24.0
lbs
List Price Per Unit:
$326.00
  • Specifications
  • Technical Data
Model_Number
KA55KGD8330613B
PRODUCT NAME
.25 HP - - 1625
PHASETYPE
1_PHASE
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.25
KILOWATTS
0.2
POLES
4
NUMBER SPEEDS
1
RPM
1625
HERTZ
50
HERTZ 2
60
VOLTS PRIMARY
230
VOLTS
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1
MOUNTING
BRACKET
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW LEAD END
RUNCAPMFD
4
RUNCAPVOLTS
370
SHIPPING WEIGHT
24
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
23.24
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
5.879
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
A
LOCKED ROTOR AMPS
4
FULL LOAD AMPS PRIMARY
1.9
KA55KGD8330613B
FHPO
V01750717
D04206860
