B8450UI - 1 HP - OAO - 1800 RPM

Catalog #: B8450UI
Model #:M055ABW1152015B

Details

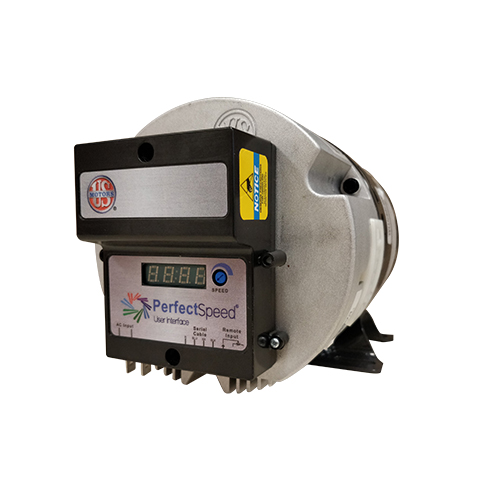

RESCUE® PerfectSpeed® ECM w/ Base
Direct Drive Blower 5.6" dia.
Adjust motor speed by using the
onboard Interface or 0-10 VDC
user-supplied external potentiometer
Discount Symbol:
DS-3ECM
Unit Weight:
17.0
lbs
List Price Per Unit:
$498.00
  • Specifications
  • Technical Data
Model_Number
M055ABW1152015B
PRODUCT NAME
1 HP - OAO - 1800
PHASETYPE
1_BRUSHLESS PERMANEN
MOTOR ENCLOSURE
OAO
HORSEPOWER
1
POLES
10
NUMBER SPEEDS
1
RPM
1800
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
115/208-230 V
VOLTS
115
VOLTS 2
208
VOLTS 3
230
FRME
48
SHAFT CODE
Y
STACK
1.875
MOTOR TYPE
FHP
OPPOSITE END BEARING
6201
SHAFT END BEARING
6201
AMBIENT
40
ROTATION
CW LE REV
SHIPPING WEIGHT
17
THERMAL PROTECTION
ELECTRONICALLY PROTECTED MOTOR
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
M055ABW1152015B
FHPO
V02835661
D04814746
