56110S - 1 HP - OPAO - 1050 RPM

Catalog #: 56110S
Model #:M055AUM3579012B

Details

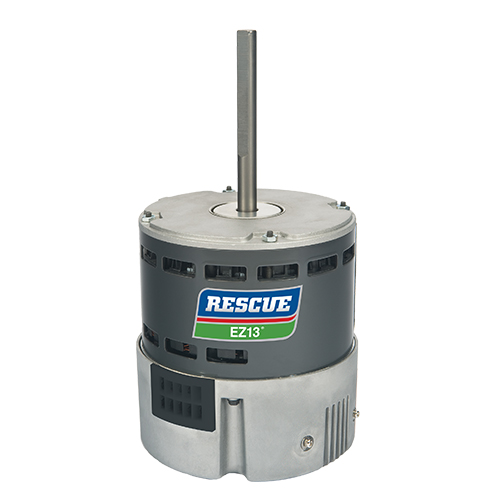

RESCUE® EZ13™ ECM
Single Voltage Direct Drive Fan
Universal ECM Replacement for Selectech X13 and EnduraPro
Auto-Sensing Rotation
Ready to install No Programming required
Discount Symbol:
DS-3ECM
Unit Weight:
18.0
lbs
List Price Per Unit:
$448.00
  • Specifications
  • Technical Data
Model_Number
M055AUM3579012B
PRODUCT NAME
1 HP - OPAO - 1050
PHASETYPE
1_BRUSHLESS PERMANEN
MOTOR ENCLOSURE
OPAO
HORSEPOWER
1
KILOWATTS
0.8
POLES
10
NUMBER SPEEDS
1
RPM
1050
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
Y
STACK
2.375
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CCW LE REV
SHIPPING WEIGHT
18
THERMAL PROTECTION
ELECTRONICALLY PROTECTED MOTOR
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
FULL LOAD AMPS PRIMARY
10.3/10.8
VOLTS 2
127
M055AUM3579012B
FHPO
V02841316
D04814746
