1184,OAO,3PH,STD
Catalog #: 1184
Model #:P063EKG4995015B
![](https://mc08e511869d7d4a108a39d.blob.core.windows.net/commerce-photos/752-1.jpg)
Details
Three Phase

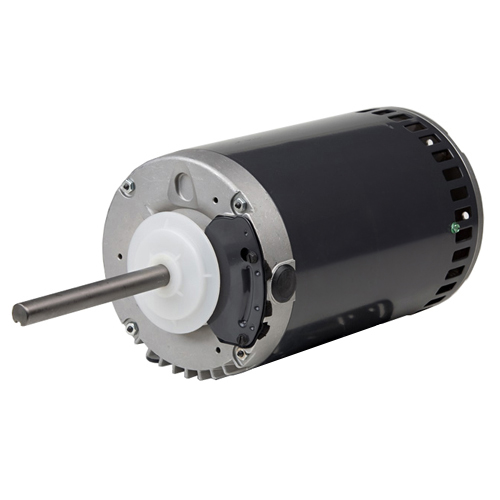

Commercial Condenser Fan
Open and Totally Enclosed Air Over
60C Ambient Belly Band Mount
Flat and Keyway on Shaft
Discount Symbol:
DS-3HAC
Unit Weight:
40.0
lbs
List Price Per Unit:
$775.00
- Specifications
- Technical Data
Model_Number
P063EKG4995015B
PRODUCT NAME
2 HP - - 1140
PHASETYPE
3_PHASE
HORSEPOWER
2
POLES
6
NUMBER SPEEDS
1
RPM
1140
HERTZ
60
VOLTS PRIMARY
575
VOLTS
575
FRME
56
STATOR DIAMETER
6.3
STACK
4.5
MOTOR TYPE
FHP
SHIPPING WEIGHT
40
BREAKDOWN TORQUE
497.5
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
322.8
LOCKED ROTOR TORQUE UOM
OZFT
LOCKED ROTOR AMPS
13.03
P063EKG4995015B
FHPO
V01792371
