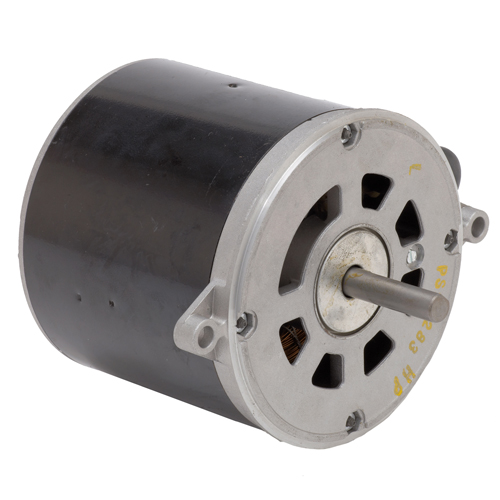

3196,TENV,1PH,STD

Catalog #: 3196
Model #:S055SHF5519R14B

Details

Split Phase
Oil Burner
OEM Replacement Motors
Flange Mounted TENV when Mounted without Base
Manual Protection
Discount Symbol:
DS-3HAC
Unit Weight:
12.0
lbs
List Price Per Unit:
$180.00
  • Specifications
  • Technical Data
Model_Number
S055SHF5519R14B
PRODUCT NAME
.125 HP - - 1725
PHASETYPE
1_PHASE
MOTOR ENCLOSURE
TENV
HORSEPOWER
.125
KILOWATTS
0.1
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
115
VOLTS
115
FRME
48
SHAFT CODE
N
STATOR DIAMETER
5.5
STACK
1.25
MOUNTING
N-FLANGE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CW LEAD END REV
SERVICE FACTOR
1
SHIPPING WEIGHT
12
THERMAL PROTECTION
MANUAL RESET
BREAKDOWN TORQUE
18.75
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
13.26
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
R
LOCKED ROTOR AMPS
15.14
FULL LOAD AMPS PRIMARY
2.4
S055SHF5519R14B
FHPO
V02806727
D04806782
