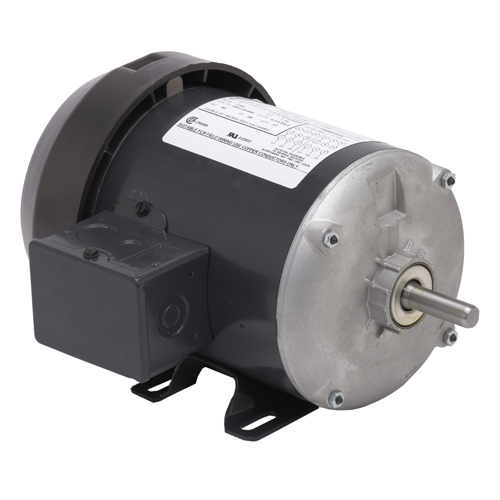

T12B10N - 0.5 HP - TEFC - 1725 RPM

Catalog #: T12B10N
Model #:S063JWR8122012B

Details

General Purpose
Single Phase
Totally Enclosed Fan Cooled (TEFC)
Split Phase
Two Speed
Discount Symbol:
DS-3FMP
Unit Weight:
27.0
lbs
List Price Per Unit:
$493.00
  • Specifications
  • Technical Data
Model_Number
S063JWR8122012B
PRODUCT NAME
.5 HP - TEFC - 1725
PHASETYPE
1_SPLIT PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
.5
HORSEPOWER 2
0.25
KILOWATTS
0.4
POLES
4
POLES 2
6
NUMBER SPEEDS
3
RPM
1725
RPM 2
1140
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
56
STATOR DIAMETER
6.3
STACK
2.25
MOUNTING
RIGID BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
BALL
SHAFT END BEARING
BALL
AMBIENT
40
ROTATION
CW/CCW
SERVICE FACTOR
1
SHIPPING WEIGHT
27
THERMAL PROTECTION
NONE
BREAKDOWN TORQUE
72.23
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
37.48
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
M
LOCKED ROTOR AMPS
44.1
FULL LOAD AMPS PRIMARY
7.2/5.0
SHAFT CODE
Y
S063JWR8122012B
FHPO
V01794548
