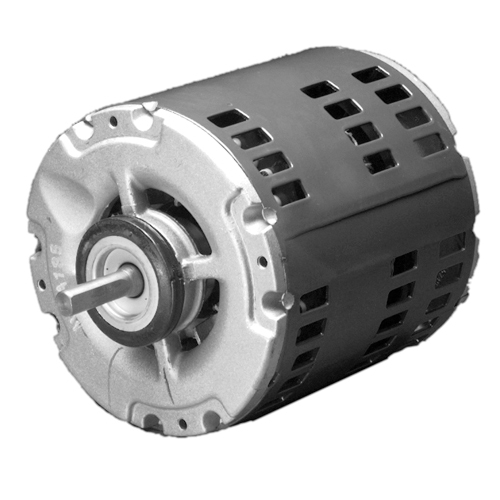

6770,OPEN,1PH,UN
Catalog #: 6770
Model #:S063SSH8068011B
Details
Split Phase
Two Speed Evaporative Cooler
6.3" Dia. Open Dripproof (ODP)
Clockwise Rotation on Shaft End
Hub Mount Add KIT51 for Base
Discount Symbol:
DS-3HAC
Unit Weight:
19.23
lbs
List Price Per Unit:
$312.00
- Specifications
- Technical Data
Model_Number
S063SSH8068011B
PRODUCT NAME
.75 HP - - 1725
PHASETYPE
1_PHASE
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.75
HORSEPOWER 2
0.25
KILOWATTS
0.6
POLES
4
POLES 2
6
NUMBER SPEEDS
2
RPM
1725
RPM 2
1140
HERTZ
60
VOLTS PRIMARY
115
VOLTS
115
STATOR DIAMETER
6.3
STACK
1.5
MOUNTING
HUB
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
CCW LEAD END
SERVICE FACTOR
1
SHIPPING WEIGHT
19
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
68.76
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
31.56
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
KVA CODE LETTER
J
LOCKED ROTOR AMPS
42.28
FULL LOAD AMPS PRIMARY
10.2/4.7
SERVICE FACTOR AMPS PRIMARY
10.2/4.7
SHAFT CODE
Y
S063SSH8068011B
FHPO
V01789913
D04789917
